PWRM10-01
IoT Energy Monitoring Module
The Energy Monitoring Module PWRM10-01 is an IoT universal, high-accuracy, compact, self-powered, electrical energy measurement device that interfaces to three-phase and single-phase systems. Specifically designed for industrial and commercial heavy-duty new and retrofit applications, the module provides a wide range of highly accurate power and energy measurement values over an operating temperature range of -40°C to +85°C.
The DIN-rail mounted enclosures have pluggable terminal blocks for connecting to phase voltages and phase currents which simplifies setup and maintenance, and the small format requires little space in control cabinets. The PWRM10-01 module interfaces to phase voltages of 85–265VAC, 50/60Hz, and is self-powered from any of the lines. Higher voltages can be interfaced to with the use of voltage transformers (VT) and appropriate scaling factors in the module.
Phase current inputs have an industry-standard range of 0.333VAC full-scale. An external shunt, current transformer, or Rogowski Coil is required to measure currents directly or non-contact.
BENEFITS
Measuring power quality, monitoring energy consumption, determining machine health, and performing other powerful data analysis turn into simple and easy operations with this user friendly and feature rich IoT energy monitoring module.
APPLICATIONS
The PWRM10-01 module is designed for installation in harsh industrial environments and has a high-level of noise immunity.
The DIN-rail mounted enclosures have pluggable terminal blocks for connecting to phase voltages and phase currents which simplifies setup and maintenance, and the small format requires little space in control cabinets. The PWRM10-01 module interfaces to phase voltages of 85–265VAC, 50/60Hz, and is self-powered from any of the lines. Higher voltages can be interfaced to with the use of voltage transformers (VT) and appropriate scaling factors in the module.
Phase current inputs have an industry-standard range of 0.333VAC full-scale. An external shunt, current transformer, or Rogowski Coil is required to measure currents directly or non-contact.
BENEFITS
Measuring power quality, monitoring energy consumption, determining machine health, and performing other powerful data analysis turn into simple and easy operations with this user friendly and feature rich IoT energy monitoring module.
APPLICATIONS
- Energy Metering Systems
- Power Quality Monitoring
- Solar Monitoring
- Process Monitoring
- Health of Machine
- Predictive Maintenance
- Retrofit Applications in Energy Distribution and Industry
The PWRM10-01 module is designed for installation in harsh industrial environments and has a high-level of noise immunity.
Certifications
Documents
Product Availability
Usually stock to 2-3 weeks
Features
- RMS Voltages and Currents
- Phase Angles
- Line Periods
- Instantaneous Total Active and Apparent Powers Fundamental Active Power
- Fundamental Active Power
- Power Factors
- Total and Fundamental Active Energy
- Fundamental Reactive Energy
- Total Apparent Energy
- Harmonics
- Power Quality
- Over-Voltage
- Over-Current
- Sag

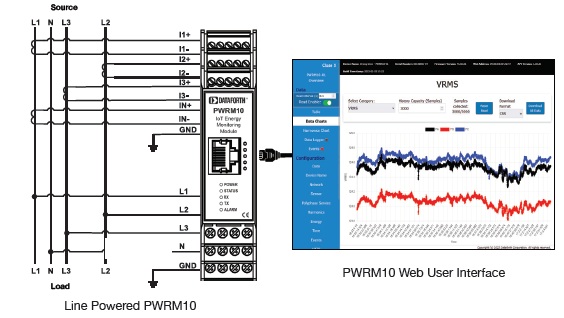

Block Diagram
Ordering
NOTE: Data in below table can be filtered. Please use the
to make your selection. If you have any questions about the displayed data,
please contact Customer Service at +1 520-741-1404 or sales@dataforth.com
FAQ
Can LabVIEW be used to query data from PWRM10-01 and PWRM20-01 modules?
Real-time data from PWRM modules can be accessed via an Ethernet TCP/IP port using the HTTP API. More specifically, any program or script that can issue and recive a response from a HTTP API GET request can communicate with PWRM modules. LabVIEW provides a VI that can be used for this specific functionality: https://www.ni.com/docs/en-US/bundle/labview/page/lvcomm/http_client_get.html.
