DSCP70

Power Supply Connection Module for DIN Rail Power Bus

Each DSCP70 Power Supply Connection Module permits the delivery of power to DSCP6x modules through DIN rail mounted power-bus connectors. An external power supply, or supplies for redundant operation, are connected to the terminals of the DSCP70. The DSCP70 then routes the power to the DIN rail power-bus, provides protection against power supply reversal, provides LED status indication of correct power, inverted power connection and presence of AC, and provides over-voltage protection.
Documents
DSCP70 Datasheet
DSCP70 Configuration Guide
Product Availability
Usually stock to 2-3 weeks

Features

  • Delivers Power to DSCP6x Modules Via DIN Rail
  • Two Independent Inputs Allow Redundant Power
  • LED Indication of Power Supply Presence
  • LED Indication of Reversed Power Connection
  • 19.2 to 30VDC Power
  • Spring Cage Clamp Connection
  • Compact 6.2mm DIN Housing
  • CE Compliant

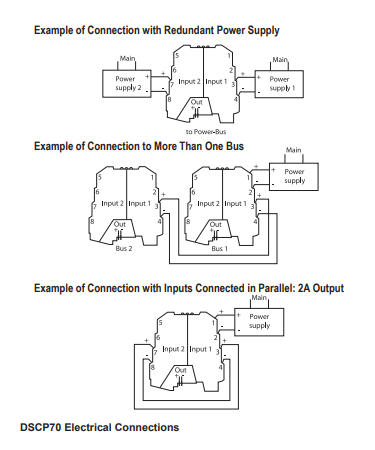

Block Diagram

DSCP70 block diagram
Ordering
NOTE: Data in below table can be filtered. Please use the to make your selection. If you have any questions about the displayed data, please contact Customer Service at +1 520-741-1404 or sales@dataforth.com

FAQ

Due to resource constraints on my computer, I'm unable to open the three dimensional CAD models provided on your website. Does Dataforth provide two demensional CAD models for download as well?
Two dimensional CAD models can be generated upon customer request. Please contact Customer Service for assistance.
How does the load resistance of a module affect the noise at the output?
Noise at the output of a module is independent of load resistance.
Can Dataforth provide calibration reports for modules I purchased?
Yes we can provide calibration reports for the modules that you purchased. You can either a) visit https://www.dataforth.com/TestDataReport.aspx to search for Test Report Datasheets by Serial Number or b) you can send us a list of model numbers and their serial numbers to support@dataforth.com

Custom Modules

Below is a list of existing custom modules. If you don't see a module matching your target specifications, contact Customer Service and Application Support to discuss design guidelines and design feasibility. Customer Service and Application Support can be reached at sales@dataforth.com or +1-800-444-7644.
NOTE: Data in below table can be filtered. Please use the to make your selection. If you have any questions about the displayed data, please contact Customer Service at +1 520-741-1404 or sales@dataforth.com
* ... Status Codes: PR = Production, PT = Prototypes, QU = Quoted
