DSCP62

Thermocouple-to-DC Current/Voltage Converter with Relay Output

Each DSCP62 Thermocouple Converter provides a single channel of thermocouple input which is amplified, linearized and converted to a high-level current or voltage output. Thermocouple type, measurement range, filter, output type and range, and fault indication may be configured by dip-switch. An auxiliary relay output is provided to generate an alarm or act as a thermostat. Power can be applied directly to the converter’s terminals or through a DIN rail mounted bus connector accessory, eliminating the need to wire power to each individual converter.
Documents
DSCP62 Datasheet
DSCP62 Configuration Guide
Product Availability
Usually stock to 2-3 weeks

Features

  • Input: Thermocouple types J, K, E, N, S, R, B, T
  • Output Current: 0 to 20, 4 to 20, 20 to 0, 20 to 4mA
  • Output Voltage: 0 to 5, 1 to 5, 0 to 10, 10 to 0VDC
  • Auxiliary Relay for Alarm or Control
  • 1500Vrms Galvanic Isolation, 3-Way
  • 19.2 to 30VDC Power
  • Spring Cage Clamp Connection
  • 14-Bit Resolution
  • Better than ±0.1% Accuracy
  • Configuration by Dip-Switch
  • Compact 6.2mm DIN Housing
  • CE Compliant

Block Diagram

DSCP62 block diagram
Ordering
NOTE: Data in below table can be filtered. Please use the to make your selection. If you have any questions about the displayed data, please contact Customer Service at +1 520-741-1404 or sales@dataforth.com

FAQ

I have a high-speed application that requires a module for converting current to voltage (4-20mA to 0-5V) and also from voltage to current (0-5V to 4-20mA). Due to the high-speed of the application it would be preferable if there was no internal filter. Does Dataforth have a module that could meet these requirements?
The DSCP63 DC Voltage/Current converter is a match for this application. This module provides a single channel of voltage or current input which is converted to a voltage or current output. Input/output range, filter, fault indication, square root function and other functions may be configured by dip-switch. Disabling the filter on this module will reduce response time from <74ms to <35ms. Other modules that have configurable filters include the following: DSCP55, DSCP61, DSCP62, DSCP64, DSCP65, and DSCP81.
Due to resource constraints on my computer, I'm unable to open the three dimensional CAD models provided on your website. Does Dataforth provide two demensional CAD models for download as well?
Two dimensional CAD models can be generated upon customer request. Please contact Customer Service for assistance.
How does the load resistance of a module affect the noise at the output?
Noise at the output of a module is independent of load resistance.
Can Dataforth provide calibration reports for modules I purchased?
Yes we can provide calibration reports for the modules that you purchased. You can either a) visit https://www.dataforth.com/TestDataReport.aspx to search for Test Report Datasheets by Serial Number or b) you can send us a list of model numbers and their serial numbers to support@dataforth.com

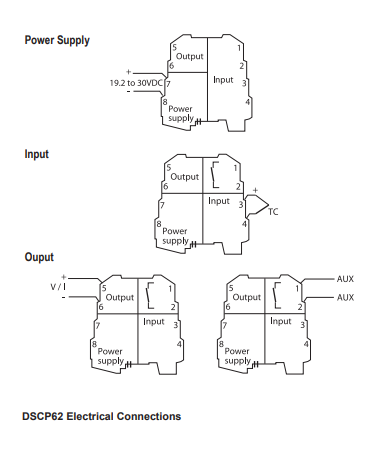

Can terminals 6 & 8 on DSCP62 be connected together without damaging the unit?
Yes. However, keep in mind, when those terminals are not connected together, the module offers up to 1500Vrms isolation of the output section from the power section.
When those terminals are connected together, that isolation is cancelled, so the input of the device the module output is driving can no longer float.

Module still retains 1500Vrms withstand capability to the T/C or other type of input when pin 6 and 8 are tied together.


Custom Modules

Below is a list of existing custom modules. If you don't see a module matching your target specifications, contact Customer Service and Application Support to discuss design guidelines and design feasibility. Customer Service and Application Support can be reached at sales@dataforth.com or +1-800-444-7644.
NOTE: Data in below table can be filtered. Please use the to make your selection. If you have any questions about the displayed data, please contact Customer Service at +1 520-741-1404 or sales@dataforth.com
* ... Status Codes: PR = Production, PT = Prototypes, QU = Quoted
